1.0 x 12 Heavy Duty Rubber Ship Launching Airbag Durable

Brand Name : Henger

Model Number : 1.0 x 12

Certification : CCS,ABS,LR,BV,DNV

Place of Origin : China

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10 per month

Delivery Time : 30 working days

Packaging Details : nude packing or customized

Part : marine airbag,Other,Hinge,marine equipments,Rubber

Material : Natural Rubber,Steel,Mixed rubber with natural rubber and carbon,Nylon Rubber,HDPE

Product name : Ship launching marine air bag,marine rubber airbag,ship launching airbag,BV Certificate Pneumatic Rubber Heavy Lifting Ship Launching Airbag,High Quality Mooring Spherical Steel Buoy

Color : Black,grey,Black Orange,accoring to requirements

Application : salvage,heavy lifting,Ship launching,Marine/quay/dock/boat,Ship Launching/landing/lifting

Size : Customized Size,Customer's Ruquirement,2m x 24m or as per customer's request,accoring to requirements,1.5m x 15m

Diameter : 0.8--2.5M,1.8m,from 100mm to 250mm,0.6-2.8m,0.4m-2.0m

Usage : Ship launching,landing and slvage,Protect Boat,moving/lifting/landing /launching,Boat Fender

Standard : CB/T-3837,ISO14409,CB/T-3795,ISO Standard,ISO 14409

Packing : Standard Package,Pallet Package for Ship Launching Airbag,Rubber wheel and pallet,nude packing wooden platte packing,Pallet

Name : Barge Tug Launching High Air-Press Ship Airbag,Marine Rubber Ship Launching Airbags,Pneumatic marine rubber airbags,marine equipment / marine part air bag supplier / marine airbag

Warranty period : 24 months,2 Years

Technology : High Pressure,Whole Wrapping,anti-explosion type. Whole-wrapping technology,Whole Intertwine technology,Explorsion Proof

Working pressure : 0.05MPa to 0.15Pa,0.08-0.15MPa,0.09MPa-0.18MPa

Length : 15m,5.0m-20m,from 1000mm to 24000mm,18m

Long : 12-18m,8-24m

Design using life : 10 years,6-10 years

Quality : excellent,Top

Contact Now

1.0 x 12 Heavy Duty Rubber Ship Launching Durable Airbag

High Bearing Capacity
Inflatable rubber airbag’s main technical requirement is regulated in CB/T 3795--1996 published by China State Shipbuilding Corporation.
Henger adopts new rubber formula and high-strength enhanced synthetic-tyre-cord layer, which improves the airbag’s bearing capacity two times more than CB/T 3795--1996 standard.
The synthetic-tyre-cord layer of Henger marine airbag adopts dipped Nylon-6 1400dtex/3-V2 tyre cord.
The strength & durability of airbag improves 20%, compared to polyester tire cord which is widely used by friendly competitors.

Marine Rubber Airbag Application

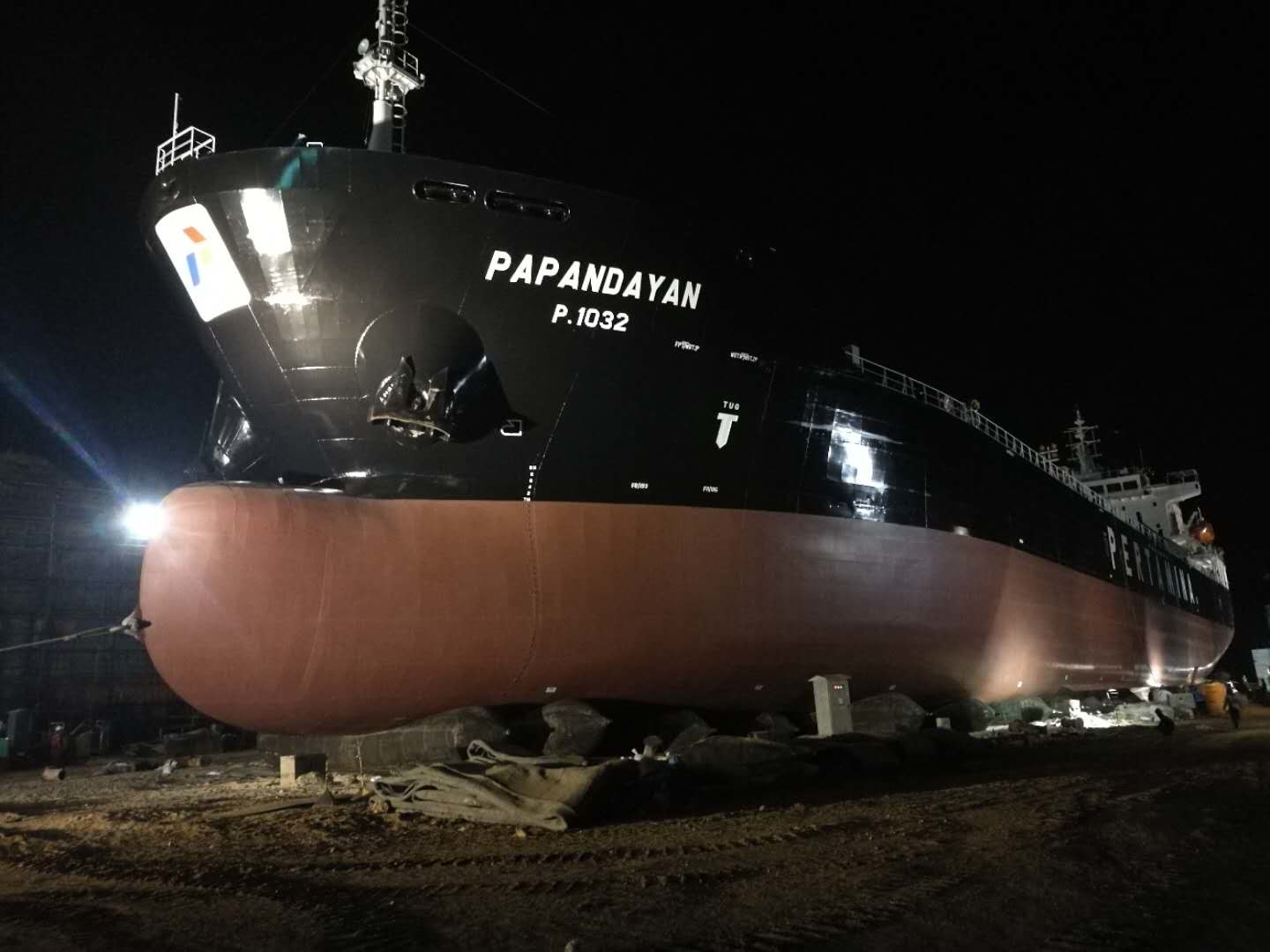

Ship Launching & Upgrading: with more than 20 years development in China, marine rubber airbag is proved to be the most reliable and stable technique for ship launching & upgrading. It is applicable from tons of flat board to ten thousand tons of huge ship. Meanwhile, marine rubber airbag is also widely acknowledged by foreign dockyards, shipyards, port/harbour construction companies. Ship launching & upgrading technique with marine rubber airbag is also highly promoted in the markets, such as America, Europe, Southeast Asia.

1.0 x 12 Heavy Duty Rubber Ship Launching Airbag Durable1.0 x 12 Heavy Duty Rubber Ship Launching Airbag Durable1.0 x 12 Heavy Duty Rubber Ship Launching Airbag Durable1.0 x 12 Heavy Duty Rubber Ship Launching Airbag Durable

Technical Parament Table

Series Model Diameter(m) Working Pressure(Mpa) Working Height(m) Beating Capacity(Ton/m)
0.4D 0.5D 0.6D 0.4D 0.5D 0.6D
S1

S10

 0.8 0.20 0.32 0.40 0.48 15.1 12.6 10.0
1 0.16 0.40 0.50 0.60 15.1 12.6 10.0
1.2 0.14 0.48 0.60 0.72 15.8 13.2 10.6
1.5 0.11 0.60 0.75 0.90 15.5 13.0 10.4
S11 0.8 0.19 0.32 0.40 0.48 14.3 11.9 9.5
1 0.15 0.40 0.50 0.60 14.1 11.8 9.4
1.2 0.13 0.48 0.60 0.72 14.7 12.2 9.8
1.5 0.10 0.60 0.75 0.90 14.1 11.8 9.4
S12 0.8 0.24 0.32 0.40 0.48 18.1 15.1 12.1
1 0.19 0.40 0.50 0.60 17.9 14.9 11.9
1.2 0.16 0.48 0.60 0.72 18.1 15.1 12.1
1.5 0.13 0.60 0.75 0.90 18.4 15.3 12.2
1.8 0.10 0.72 0.90 1.08 17.0 14.1 11.3
S2 S20 1 0.24 0.40 0.50 0.60 22.6 18.8 15.1
1.2 0.20 0.48 0.60 0.72 22.6 18.8 15.1
1.5 0.16 0.60 0.75 0.90 22.6 18.8 15.1
1.8 0.13 0.72 0.90 1.08 22.0 18.4 14.7
2 0.12 0.80 1.00 1.20 22.6 18.8 15.1
S21 1 0.27 0.40 0.50 0.60 25.4 21.2 17.0
1.2 0.23 0.48 0.60 0.72 26.0 21.7 17.3
1.5 0.18 0.60 0.75 0.90 25.4 21.2 17.0
1.8 0.15 0.72 0.90 1.08 25.4 21.2 17.0
2 0.14 0.80 1.00 1.20 26.4 22.0 17.6
S22 1 0.31 0.40 0.50 0.60 29.2 24.3 19.5
1.2 0.26 0.48 0.60 0.72 29.4 24..5 19.6
1.5 0.20 0.60 0.75 0.90 28.3 23.6 18.8
1.8 0.17 0.72 0.90 1.08 28.8 24.0 19.2
2 0.15 0.80 1.00 1.20 28.3 23.6 18.8
2.5 0.12 1.00 1.25 1.50 28.3 23.6 18.8
S3 S30 1 0.35 0.40 0.50 0.60 33.0 27.5 22.0
1.2 0.29 0.48 0.60 0.72 32.8 27.3 21.9
1.5 0.23 0.60 0.75 0.90 32.5 27.1 21.7
1.8 0.19 0.72 0.90 1.08 32.2 26.8 21.5
2 0.17 0.80 1.00 1.20 32.0 26.7 21.4
2.5 0.14 1.00 1.25 1.50 33.0 27.5 22.0
